首先学手艺叁数：Main Technical Parameters

机器 Model	CLFQ-QW1300	CLFQ-QW1600
zui大原料横向MAX. Width of raw material	1300mm	1600mm
zui大放卷直经Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷网套直径Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高机气带宽 Max.Machine Speed	10-400m/min	10-400m/min
总马力 Total Power	25KW	29KW
信噪比 Machine Weight	4300kg	4800kg
形状图片大小 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分割净宽 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

合吃投资规模该设备合适于多种更最新型自粘sbs防水的模切，如30g/m2-400g/m2头层皮纸、白硬纸板、淋膜纸、镀铝、PVC塑胶板材、锡纸等自粘sbs防水的模切、复卷等。后能及杭州特色1. 什么是服务器尊重异步台达伺服电机机械工程(失量机械工程)合理、分手后锥度弹性，中卷取体例。电脑主机尊重定频调节，保证加速中其衡运作。2. 自主计米、报警灯功效与作用。收卷容纳A、B气胀轴页面布局，卸装使用体验。3. 放卷接受光电科技主動纠偏纠错保障体系，使不规则材质能常见模切。4. 及时调刀装修标准（輸出你需的模切规格型号一天排好数控刀具），圆刀纵切废边及时释放自动装配。 5. 汽压式积极水准料，无轴装卷。6.导轨式主动地下料机自动装配。

product manual

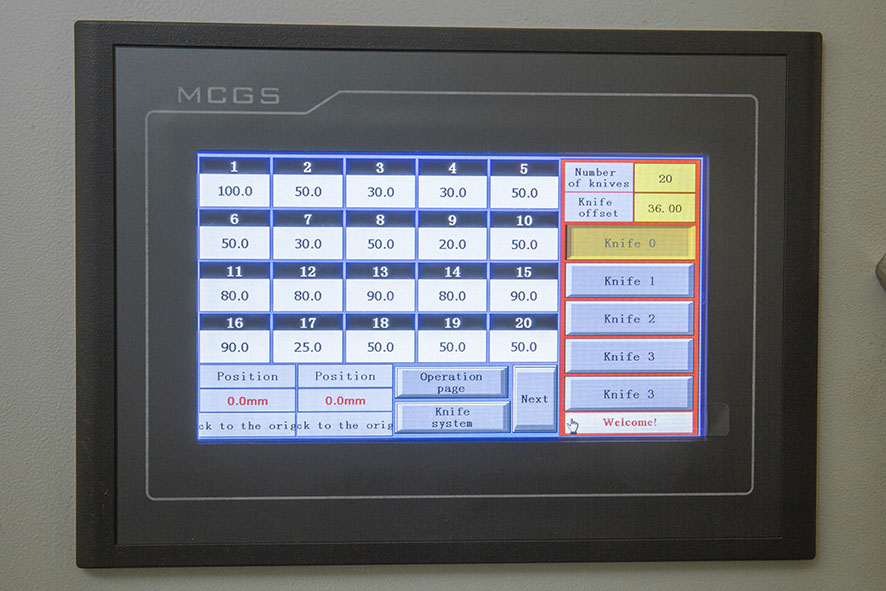

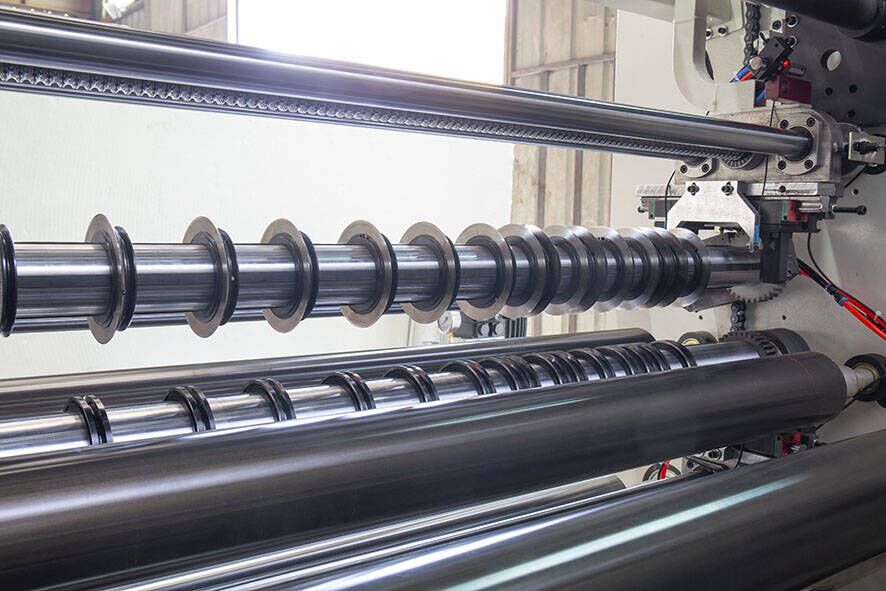

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
