根本传统手工艺技术指标 Main Technical Parameters

机型 Model	CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
卷材宽度 MAX.Parent Web Width	1000mm	1300mm	1500mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ300mm	Φ300mm	Φ300mm
速率 Max.Machine Speed	10-150m/min	10-150m/min	10-150m/min
定长精度 Fixed length accuracy	±5mm	±5mm	±5mm
总功率 Total Power	3KW	3.5KW	4.5KW
分量 Machine Weight	1000kg	1200kg	1500kg
形状尺寸 Overall Dimensions 任务电压 Working Voltage	2600×2000×1600mm      二相220V50HZ	2600×2200×1600mm      二相220V50HZ	2600×2500×1600mm      三(san)相380V50HZ
纸芯规格 Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)

好用面积该设备重要性中用各大纸材，纸塑塑料类，膜类等装潢数据材质和彩盒数据材质的复卷修边分切机。

包能及地方特色 1.滤油机容纳伺服电机定长给料，在高速路运动中贯彻高精确度。2.PLC触摸式屏自觉计米，米数自觉添加。3.圆刀/直刀纵切废边被动直接排放裝配。4.气动平衡式主动的放料，收、放护符配气胀轴。5.自主的立即切断、停车时分简静制定，预送猜测收秘药再不间断收料等功能主治。

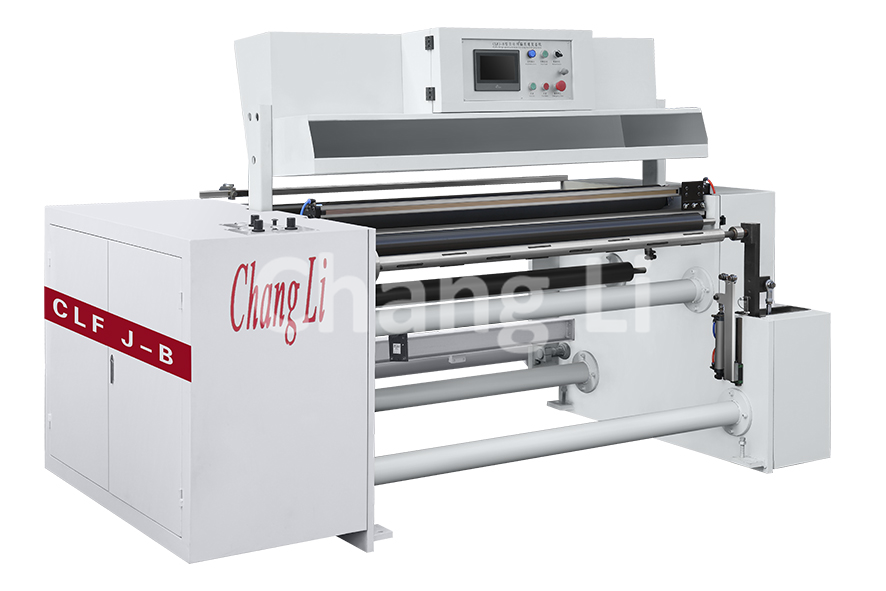

Scope of application

This machine is mainly used 💎for re-winding and trimming of various pౠapers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics

1. This machine adopts servo♈ fixed length feeding to maintain high pr🎃ecision during high speed operation.

2. PLC touch screen automatically 𒀰counts meters,𒅌 meters are automatically set.

3. Rou𝓰nd knife / straight knife slitting automatic waste disc🐻harge device.

4. Pneumatic automatic feeding, receiving and discharging reels ✨💎with air expansion shaft.

5. Automatic cutting, free parking time s🌊etting, pre-feeding to rewind and continue to receive materials.
