用处:

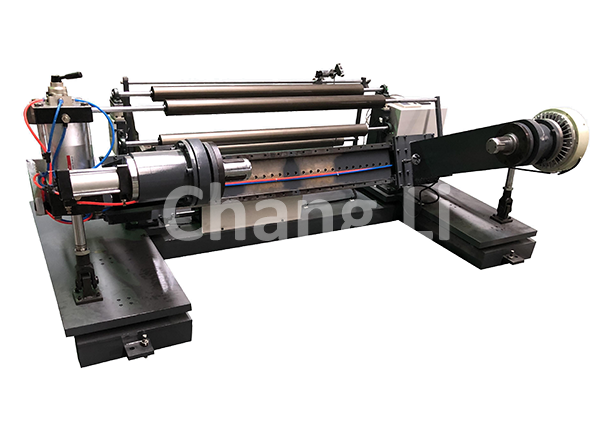

该型放料架恰当于无天车产线,承载钢丝绳圈筒纸质、氟塑料塑料膜,皮革制品,无纺织布等重形钢丝绳圈筒文件 use:This type of rack is suitable for non-travel workshops, loading heavy-duty reel materials such as web, plastic film, leather, non-woven fabric, etc.独具特色:放卷容纳无轴运输料,液压系统夹紧,手動式调薄厚,油冷式磁粉驻车鼓式制动器,料卷液压系统升降,运输料连锁便利店、合作高。由表面弹力调节器器达到主动权表面弹力吃妻上瘾。Features:The unwinding adopts shaftless loading and unloading, pneumatic locking, manual width adjustment, water-cooled magnetic powder brake, pneumatic lifting of material roll, convenient loading and unloading, and high efficiency. Automatic tension control is achieved by a tension sensor.(待选购液压多路阀送料及電動调薄厚)(Optional hydraulic loading and electric width adjustment)
首要手艺参数:Main Technical Parameters
型号 Model | 1300 | 2000 |
质料宽度MAX. Width of raw material | 1300mm | 2000mm |
放卷截面(mian)积Max.parent Web Diameter | Φ1400mm | Φ1400mm |
重(zhong)量 Machine Weight | 2300kg | 3500kg |
形状(zhuang)图片尺寸(cun)图 Overall Dimensions | 2650×1300×800mm | 3050×1300×800mm |
可依据物品重定向 高端定制技能。Can be made according to the product requires special equipment.
