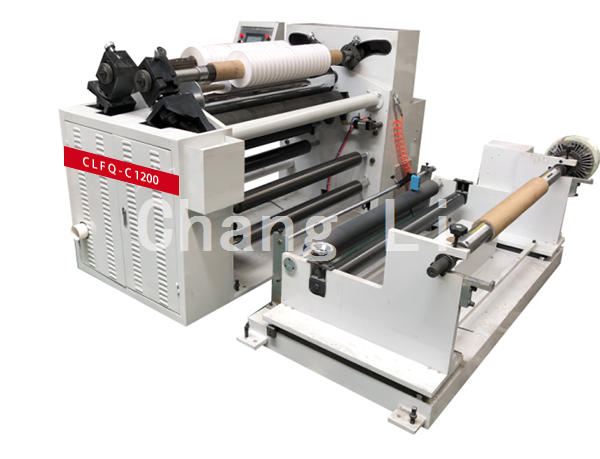

CLFQ-C1200型相貌卷取复卷模切机 宣布日期:[2018-12-27]     点击率:

前提技术基本参数:Main Technical Parameters

机型
Model

80010001200

卷材宽度
MAX.Parent Web Width

750mm950mm1150mm

放卷直径
Max.parent Web Diameter

Φ800mmΦ800mmΦ800mm

收卷直径
Max.Rewinding Diameter

Φ520mmΦ520mmΦ520mm

速率
Max.Machine Speed

0-180m/min0-180m/min0-180m/min

总功率
Total Power

4KW5.5KW5.5KW

分量
Machine Weight

2000kg2300kg2600kg

形状尺寸
Overall Dimensions

2800×2400×12002800×2600×12002800×2800×1200

纸芯规格
Paper core specification

圆刀Round Blade :3mm直刀Razor Blade :3mm


可依照规定产品标准 订做传奇装备。

Can be made according to the product requires special equipmentಞ.


用途: 表层卷取复卷分条机机混用于铝箔纸、牛皮纸张、隔热知料、烫金字膜、塑胶片透气膜(BOPP、PET、PE、PVC)等窄幅分条复卷的特色:1、放卷装有光电科技主動纠编安装、磁粉刹车器主動表面张力2、可配及时计米、及时关机装配工3、监控主机变频柜调节 4、收卷二只磁粉聚散器与主机系统联合放肆当中卷取与外形打丈同用,双轴结合收卷。5、圆刀/直刀纵切,自觉吹废边转配。


Uses:

Surface winding slitt🐠ing and rewinding machine is suitable for narrow strip rewinding such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC).

Features:

1. Unwinding is equipped with photoelectric automatic correction device and magnetic powder ꦗbrake automatic tension

2, equipped with automatic metering, automatic shꦅutdown devi🌟ce

3, the host frequency control

4. The two magnetic powder clutches and the main engine linkage control center are wound up and used in contact with the surface, and the two-axis cross winding is performed, never bi🅺ting.

5. Round knifꦑe / straight knife slitting, automatic blowing waste side device.
